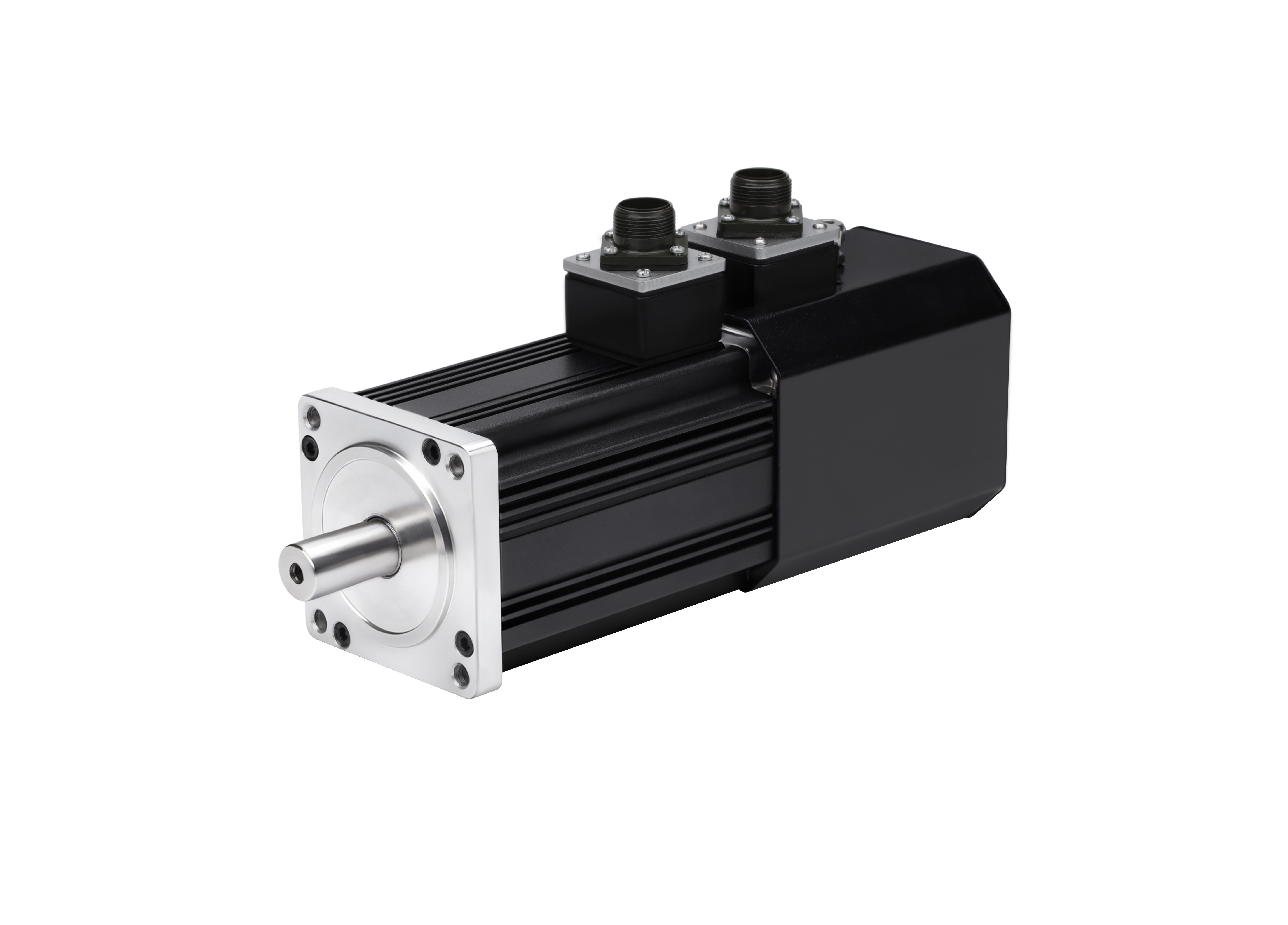

COPPER ROTOR · TE90
TE90 Series
Compact 90mm frame high-speed servo spindle motor, available in 0.75 / 1.5 / 2.2 kW, 220V / 380V, and 6,000–24,000 rpm configurations.
View Power Ratings → Request a Quote →High-Speed Motor Products
TE90 and TE150 series motors are available for high-speed spindle drive, CNC machinery, automation equipment, and customized industrial applications.
Copper-Rotor Servo Spindle Motors
TE90 / TE150 series · 6,000–24,000 rpm
Copper Rotor vs Aluminum Rotor Performance Comparison
The comparison below is based on similar power, speed, load, and cooling conditions. Shangqing copper-rotor servo spindle motors focus on efficiency, lower temperature rise, and stable long-duration operation.
| Comparison Item | Copper-Rotor Design | Aluminum-Rotor Design |
|---|---|---|
| Conductivity | Higher | Lower |
| Rotor Loss | Lower | Higher |
| Operating Efficiency | Higher | Lower |
| Moment of Inertia | Lower | Higher |
| Thermal Control | Better | More limited |
| Continuous Operation Stability | Better | More affected by conditions |
Selection note: If your equipment requires efficiency, lower temperature rise, and stable long-duration operation, a copper-rotor servo spindle motor is recommended for evaluation.

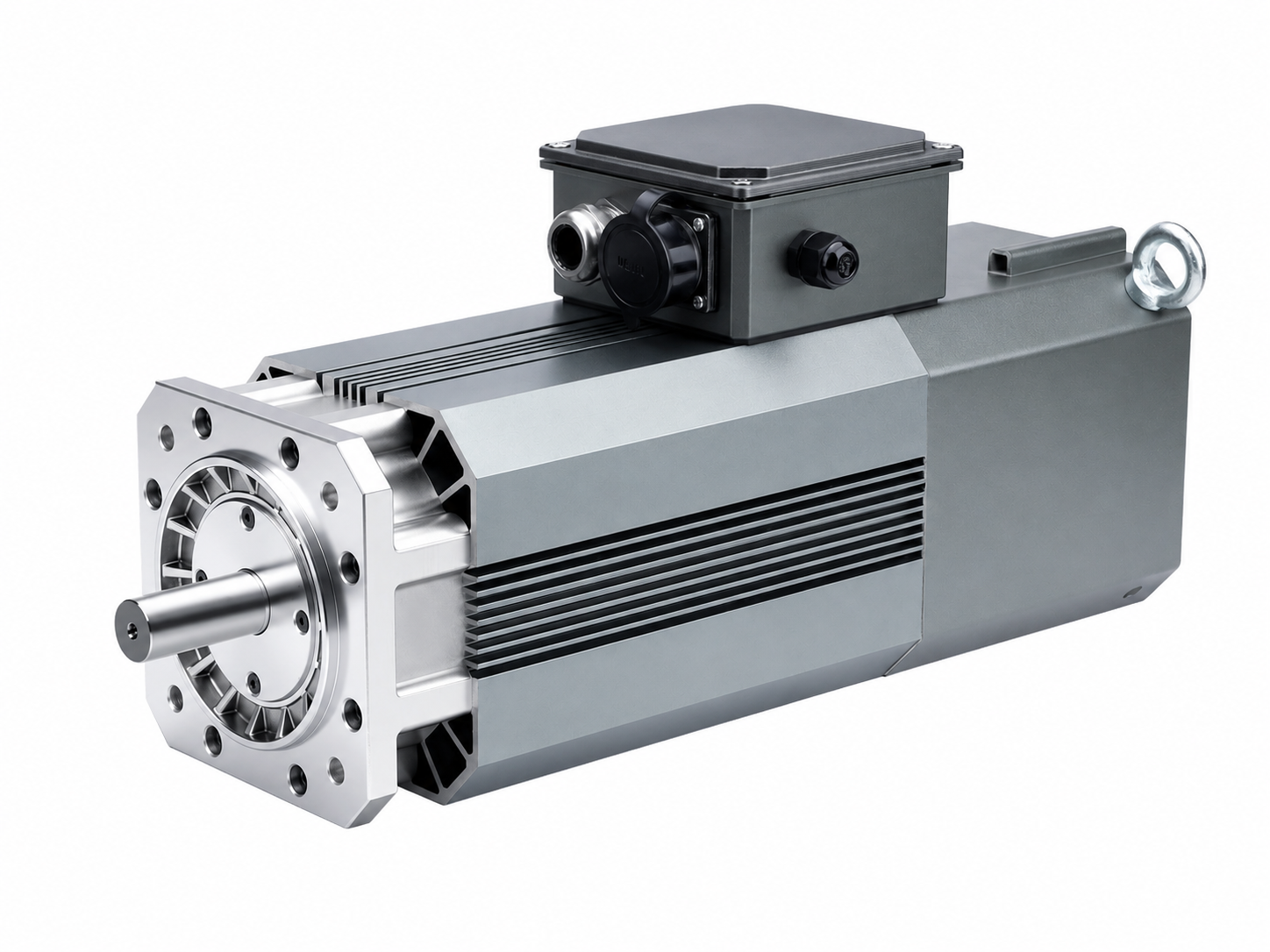

COPPER ROTOR · TE150
TE150 Series
Higher-output 150mm frame servo spindle motor for demanding spindle and industrial applications, available in 3.7 / 5.5 / 7.5 / 11 kW, 220V / 380V, and 6,000–24,000 rpm configurations.
View Power Ratings → Request a Quote →Permanent Magnet Motors
PE90 and PE150 series · Permanent Magnet Synchronous Motors (PMSM) · 6,000–24,000 rpm
Permanent Magnet Motor vs Induction Motor Performance Comparison
The comparison below is based on similar power and operating conditions. Shangqing permanent magnet motors focus on high efficiency, high power density, and fast response.
| Comparison Item | Permanent Magnet Motor | Induction Motor |
|---|---|---|
| Rotor Loss | Lower | Higher |
| Operating Efficiency | Higher | Lower |
| Power Density | Higher | Lower |
| Control Response | Faster | Slower |
| Moment of Inertia | Lower | Higher |
| Installation Flexibility | Better | More limited |
Selection note: If your equipment requires efficiency, compact size, power density, and fast response, a permanent magnet motor is recommended for evaluation.

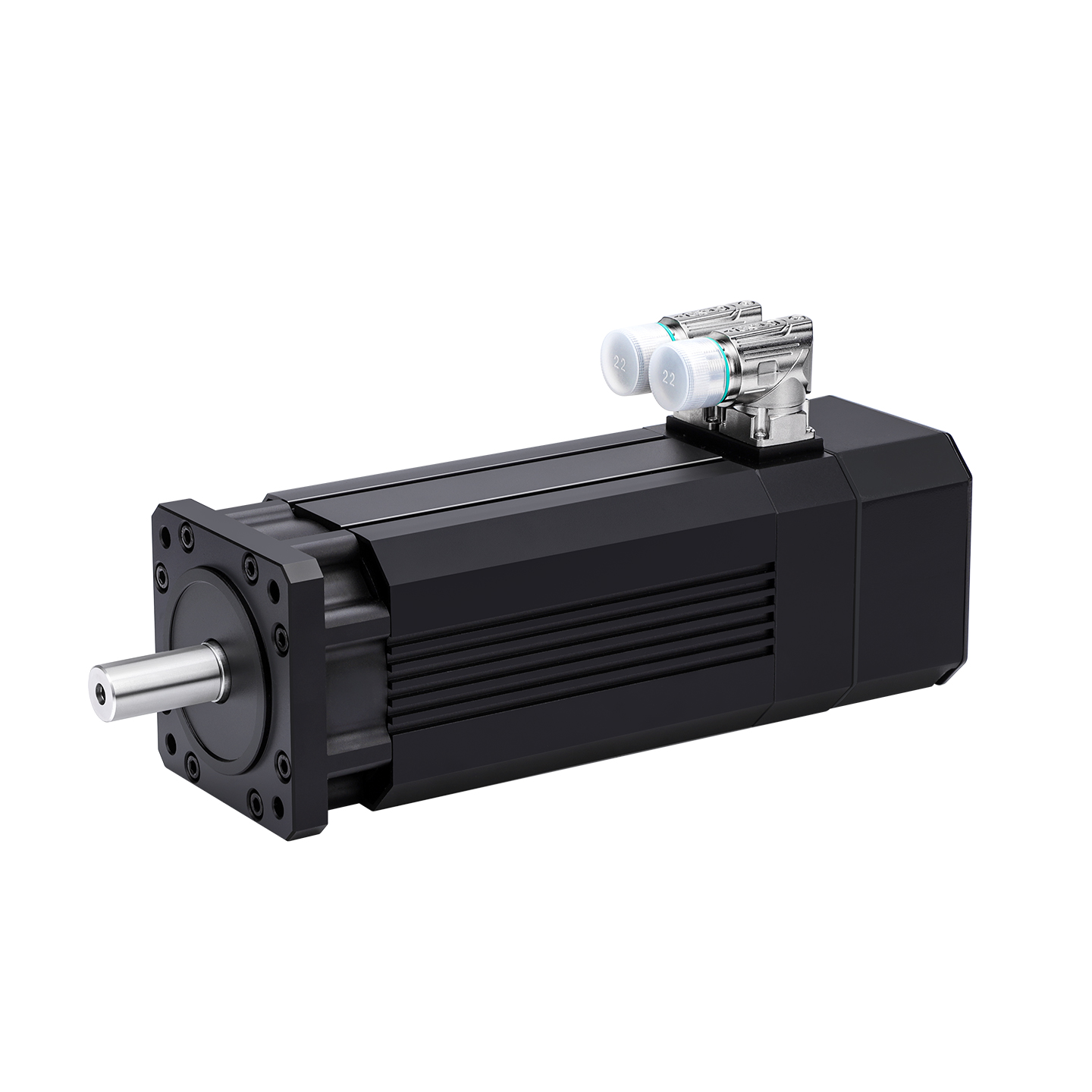

PERMANENT MAGNET · PE90
PE90 Series
High-efficiency permanent magnet motor solution for high-speed industrial equipment, spindle drive, and customized applications. Standard ratings 0.75 / 1.5 / 2.2 kW, 220V / 380V, 6,000–24,000 rpm.
View Power Ratings → Request a Quote →
PERMANENT MAGNET · PE150
PE150 Series
Higher-output permanent magnet motor for demanding industrial and spindle-drive applications. Standard ratings 3.7 / 5.5 / 7.5 / 11 kW, 220V / 380V, 6,000–24,000 rpm.
View Power Ratings → Request a Quote →Custom High-Speed Motor Solutions
Non-standard speeds and configurations — custom motor solutions evaluated to your equipment requirements
HIGH-SPEED CUSTOM
Custom High-Speed Motors
Custom solutions evaluated by target speed, voltage, mounting dimensions, shaft configuration, and cooling method.
Submit Requirements →
REQUIREMENT REVIEW
Requirement Review Process
Please provide equipment type, target speed, load conditions, mounting constraints, and estimated quantity — we will evaluate specifications and lead time.
Contact Us →Ready to Discuss Your Application?
Tell us your requirements — we will help with motor selection and provide a quote
Request a Quote
